GrainPro Cocoon

The GrainPro® Cocoon™ is a flood-protected and hermetic storage solution designed to safely store dry agricultural commodities without the need for chemicals. Made of flexible UV-resistant Polyvinyl Chloride, the GrainPro® Cocoon™ guards against rodent attacks and prevents the exchange of air and moisture. It can also protect products from being damaged by floods below its zipper line.

The GrainPro® Cocoon™ This solution has low permeability to air and moisture, enabling chemical-free storage and long-term preservation. Additionally, users will be able to monitor internal oxygen and relative humidity levels during operation.

For users conducting fumigation, an optional add-on for the GrainPro® Cocoon™ is the installation of fumigation ports.

Add-on: Inlet and outlet ports are suitable for safe, organic fumigation that will protect commodities from insect infestation in an organically-acceptable procedure.

  • 01 PRODUCT SPECIFICATION

    MATERIAL: Polyvinyl Chloride (PVC)
    THICKNESS, MICRONS: 0.83 cm (0.033 inch) ± 7%
    PRODUCT LIFE: 10 years

  • 5 MT : 200 Bags (Capacity 25kg)   100 Bags (Capacity 50kg)
    10 MT : 400 Bags (Capacity 25kg)   200 Bags (Capacity 50kg)
    20 MT : 800 Bags (Capacity 25kg)   400 Bags (Capacity 50kg)
    50 MT : 2000 Bags (Capacity 25kg)   1000 Bags (Capacity 50kg)
    100 MT : 4000 Bags (Capacity 25kg)   2000 Bags (Capacity 50kg)
    150 MT : 6000 Bags (Capacity 25kg)   3000 Bags (Capacity 50kg)
    300 MT : 12000 Bags (Capacity 25kg)   6000 Bags (Capacity 50kg)
    Disclaimer: The approximate capacity provided above is based on our computation. Capacity variance based on the actual commodity stored will apply.

  • 5 MT : 2.98m x 1.65m x 1.5m (L x W x H)
    10 MT : 3.3m x 2.98m x 1.5m (L x W x H)
    20 MT : 3.98m x 3.8m x 2.0m (L x W x H)
    50 MT : 8.9m x 4.45m x 2.0m (L x W x H)
    50 MT : 5.95m x 4.35m x 3.0m (L x W x H)
    100 MT : 8.6m x 5.8x 3.0 (L x W x H)
    150 MT : 8.9m x 8.5m x 3.0m (L x W x H)
    150 MT : 7.5m x 6.8m x 4.48m (L x W x H)
    300 MT : 11.88m x 11.77m x 3m (L x W x H)

FEATURES
  • Retains the taste, color, and aroma of stored commodities
  • Installation requires little infrastracture
  • Preserves the quality of commodities throughout long period of storage
  • Maintains the germination and vigor of stored seeds
  • Weather-resistant and UV-protected, usable both indoors or outdoors
  • Fit for the storage of organic products
  • Protects against mold growth and insect infestation
  • Allows users to check the oxygen and relative humidity levels
  • Commodity can be stored at ambient temperatures instead of the cold storage method

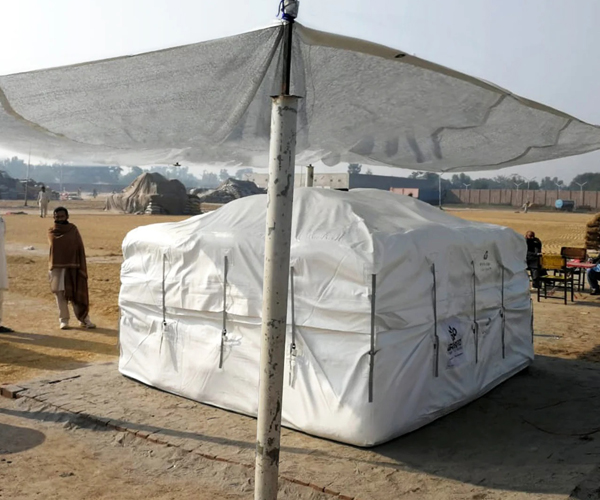

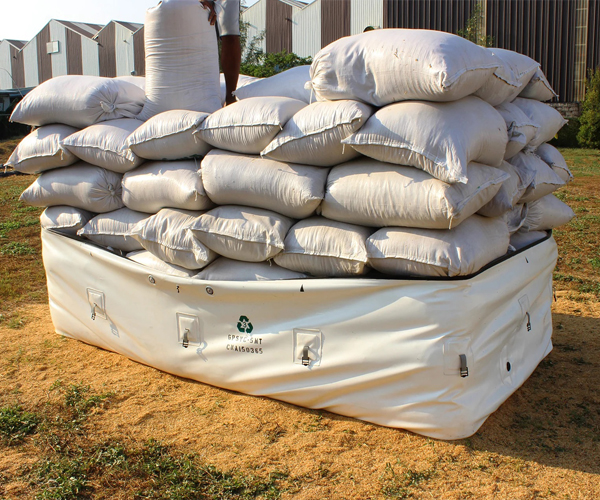

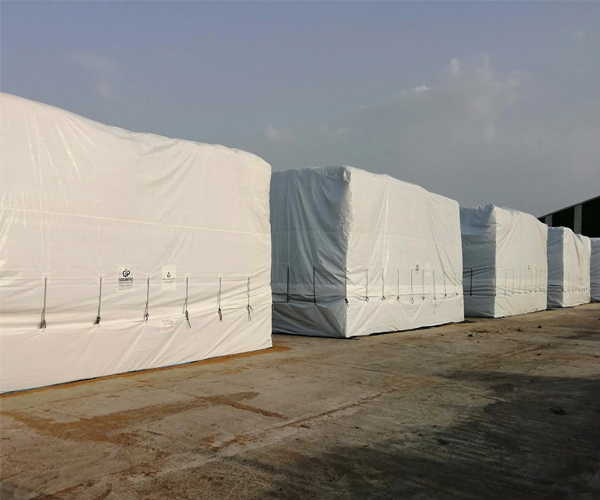

Product Images
