GrainPro Bubble Dryer

The GrainPro® Bubble Dryer™ is a tunnel-type drying system powered by solar energy or electricity, operating by balancing ambient relative humidity and the moisture content of the commodities being dried.

This multi-commodity dryer is composed of a transparent, UV-resistant polyethylene top cover and a black reinforced PVC drying floor, both connected by a heavy-duty zipper. Solar radiation enters the drying chamber through the transparent top cover and heats up the agricultural commodity inside. Moisture will be vaporized and pushed out of the chamber by its ventilators. A rake mixer is also included and usable in all types of terrain, and optionally, a tube mixer that provides undulating motion during mixing operations.

The GrainPro® Bubble Dryer™ has two models:
1. Solar, which operates with solar energy; 2. Electric, which operates with electricity.

  • 01 PRODUCT SPECIFICATION

    MATERIAL: UV-LDPE
    THICKNESS, MICRONS: Top Cover : 0.15 (0.006) & Drying Floor: 0.52 (0.02)
    PRODUCT LIFE: 2 Years

  • Small (25) : 20 bags (25 kg) & 10 bags (50 kg)
    Medium (25) : 40 bags (25 kg) & 20 bags (50 kg)
    Disclaimer: The approximate capacity provided above is based on our computation. Capacity variance based on the actual commodity stored will apply.

  • Small(25) : 15.0m x 2.0m
    Medium(25) : 26.0m x 2.0m

FEATURES
  • Faster drying time during fully sunny conditions over conventional sun drying
  • Installable on any flat surface, a multi-commodity dryer
  • Portable and easy to relocate
  • A cheaper option/solution relative to existing mechanical dryers
  • Protects commodities during drying to prevent post-harvest losses
  • Also provides protection from birds, fowls, and other animals
  • Prevents spillage & contamination with hazardous materials

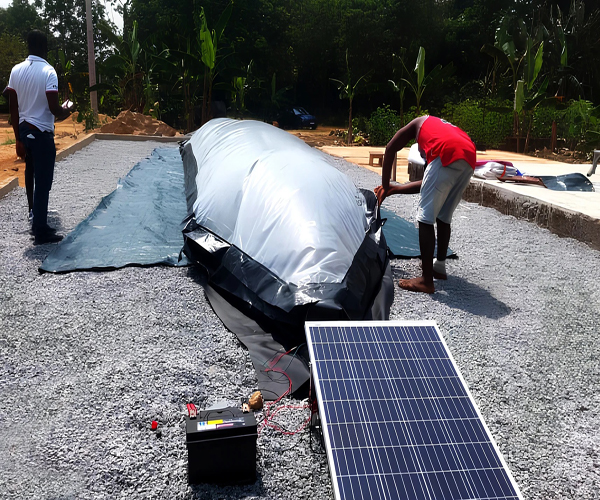

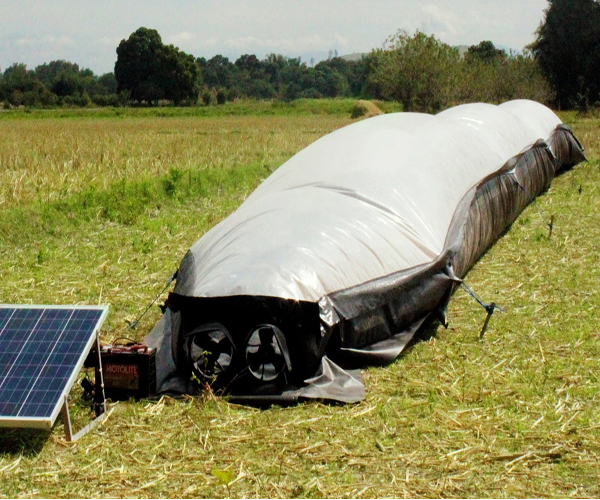

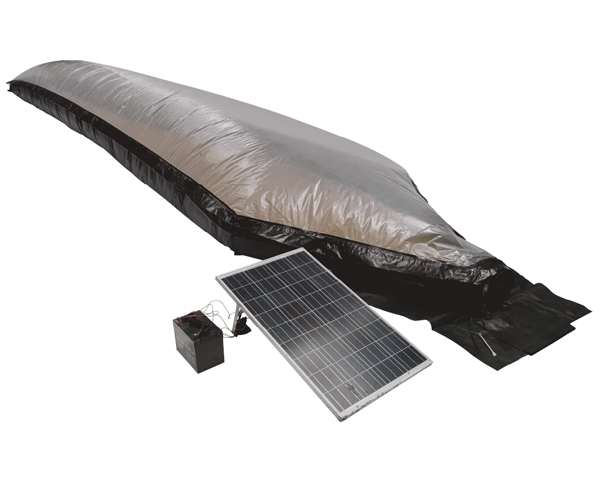

Product Images
